The ASR PRO - Generation 2 offers exceptional stability and rigidity, delivering a zero-flex experience with wheelbases over 30nm of torque and top hydraulic pedals. Its highly adjustable wheel deck features quick adjustment handles and sliders for easy horizontal and vertical adjustments. Switching between different wheel types takes less than 10 seconds.

The ASR PRO - Generation 2 Wheel Deck moves 4.5" in all directions, and the independent pedal tray and heel rest are easily adjustable for position and angle. The flat face aluminum profile ensures perfect stability, making this chassis the most stable in the sim racing industry. High-quality thick steel plates maximize stability.

Designed for ultimate durability, the ASR PRO - Generation 2 can hot-swap from a sim racing wheelbase to a flight sim yoke in less than a minute. Made from top-grade aluminum sourced in the USA and assembled in Canada, it allows for multiple configurations for comfort in both short and long sim racing sessions. The 6" aluminum base and seat mounting configuration allow vertical seat adjustments. Suitable for most builds and heights up to 6'6" (1.98m).

All steel parts, including wheel mounting plates and pedal plates, come in a textured matte black finish.

Wheel Deck Options:

1. Standard Wheel Deck: For entry-level and mid-range products from Thrustmaster, Fanatec, and Logitech.

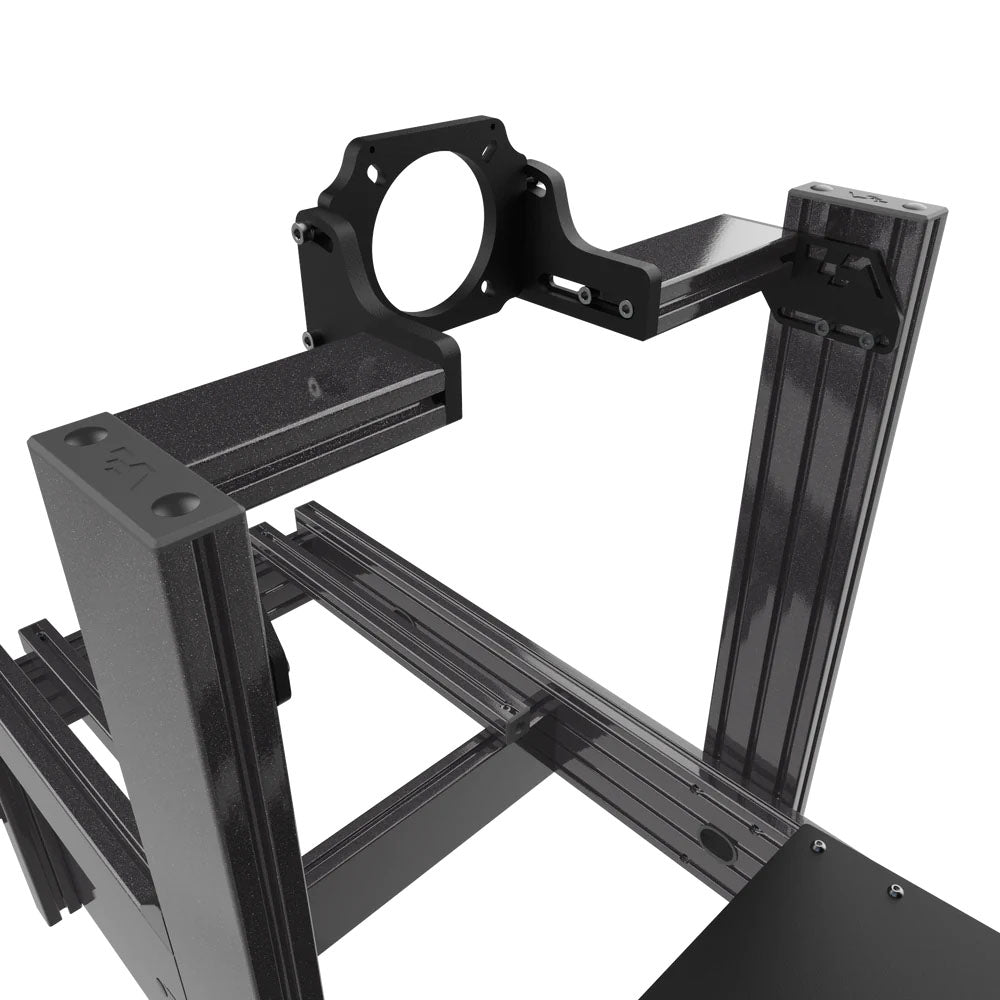

2. Front Mount & Side Mount: For Fanatec DD products, Asetek Wheel Base, MiGE motor-type wheelbases (Simucube, Simagic Alpha/Alpha Mini, VRS products).

Customization:

The ASR PRO is available in a variety of powder coat colors on demand. Customizations such as UV print and vinyl wraps are available to match your racing team's colors.

Specifications:

• Base Length: 50"
• Base Width: 22"
• Chassis Maximum Length: 56" (including the pedal tray support base)
• Chassis Width: 25" (including the wheel base column)
• Full Product Width: 29" (including support feet)
• Height at Wheel Base Column Tip: 32"
• Height at Pedal Tray (flat): 18"
• Height at Pedal Tray (fully angled): 21.5"

What's Included:

Box 1 (Aluminum): 50" x 6" x 3"

• 1 x 50" x 6" x 1.5" aluminum profile
• 1 x 30" x 4.5" x 1.5" aluminum profile
• 1 x 19" x 4.5" x 1.5" aluminum profile

Box 2 (Aluminum): 50" x 6" x 3"

• 1 x 50" x 6" x 1.5" aluminum profile
• 1 x 30" x 4.5" x 1.5" aluminum profile
• 1 x 16" x 1.5" x 1.5" aluminum profile
• 1 x 19" x 3" x 1.5" aluminum profile

Box 3 (Aluminum): 22" x 5" x 3"

• 2 x 22" x 1.5" x 1.5" aluminum profiles
• 1 x 16" x 1.5" x 1.5" aluminum profile
• 1 x 19" x 3" x 1.5" aluminum profile
• ASR PRO Front Plate with Advanced SimRacing crest
• ASR PRO Back plate with Advanced SimRacing crest

Box 4 (Hardware): 10" x 8" x 4"

• 16 x Corner Gussets and Plastic Caps
• 50 x M8 Screws (16mm)
• 10 x M8 Screws (20mm)
• 4 x M8 Screws (12mm)
• 10 x M8 Flathead Screws (20mm)
• 4 x 5/16" Screws for filted ends (16mm)
• 70 x M8 T-Nuts
• 2 x Side mounting plates (6" x 7")
• 1 x Side mounting plate (4.5" x 1.5")
• Endcaps: 2 x 6" Endcaps, 2 x 4.5" Endcaps, 5 x 1.5" Endcaps, 1 x 3" Endcap
• 22 x Pushpins
• 4 x M10 Rubber feet
• 4 x Metal plates for rubber feet

Box 5 (Wheel Deck Selection): 13" x 10" x 3"

• Depending on your selection: Standard Wheel Deck or Podium DD Side Mount or Podium DD Side Mount and Front Mount or CSL DD Side Mount
• 8 x Flathead socket cap screws (16mm)
• 8 x M8 T-Nuts
• 2 x 7.5" x 3" x 1.5" aluminum profiles

Box 6 (Pedal Support) Depending on your selection

• Steel Pedal Plate: 19" x 20" x 7", 1 x 3/16" Steel Pedal Plate
• Aluminum Pedal Deck & Heel Rest: 20" x 9" x 6", 2 x 18.5" x 3" x 1.5" aluminum profiles, 2 x 1/4" Side Steel Plates, 1 x 1/8" Steel Heel Rest, 12 x M8 Socket Cap Screws (16mm), 4 x M8 Screws (12mm), 8 x M8 T-Nuts

Compatibility:

Standard Wheel Deck:

• Logitech products, Thrustmaster products, Fanatec entry-level and mid-range products (including CSL DD and Podium DD products), Simagic M10, AccuForce Pro V2 Steering System, Moza products

Front Mount & Side Mount:

• Simucube 2 Sport, Pro & Ultimate, VRS Direct Force Pro, AccuForce Pro V2 Steering System, Simagic Alpha/Alpha Mini, other MiGE motor-type wheelbases
• Note: For Asetek compatibility, please contact us.

PRO Aluminum Pedal Deck & Heel Rest:

• Heusinkveld, Sim Pedals Sprint, Ultimate, Ultimate+, MECA Cup1, Simtrecs ProPedal GT, Sim Coaches P1-2/3 Pro Hydraulic Pedals, Simforge Engineering Mark-1, VRS Pedals, RaceWerks S1 PRO, Simworks PRO GT V3.1 LC Pedal Set, Venym Pedals, Asetek Pedals, HPP JBV 2/3 Pedal System (JBV Angled Mounting Tabs required), and many more (please inquire directly for specific pedal sets)
• NOT COMPATIBLE with the Logitech G29 pedal set or the Fanatec ClubSport Pedals V3
